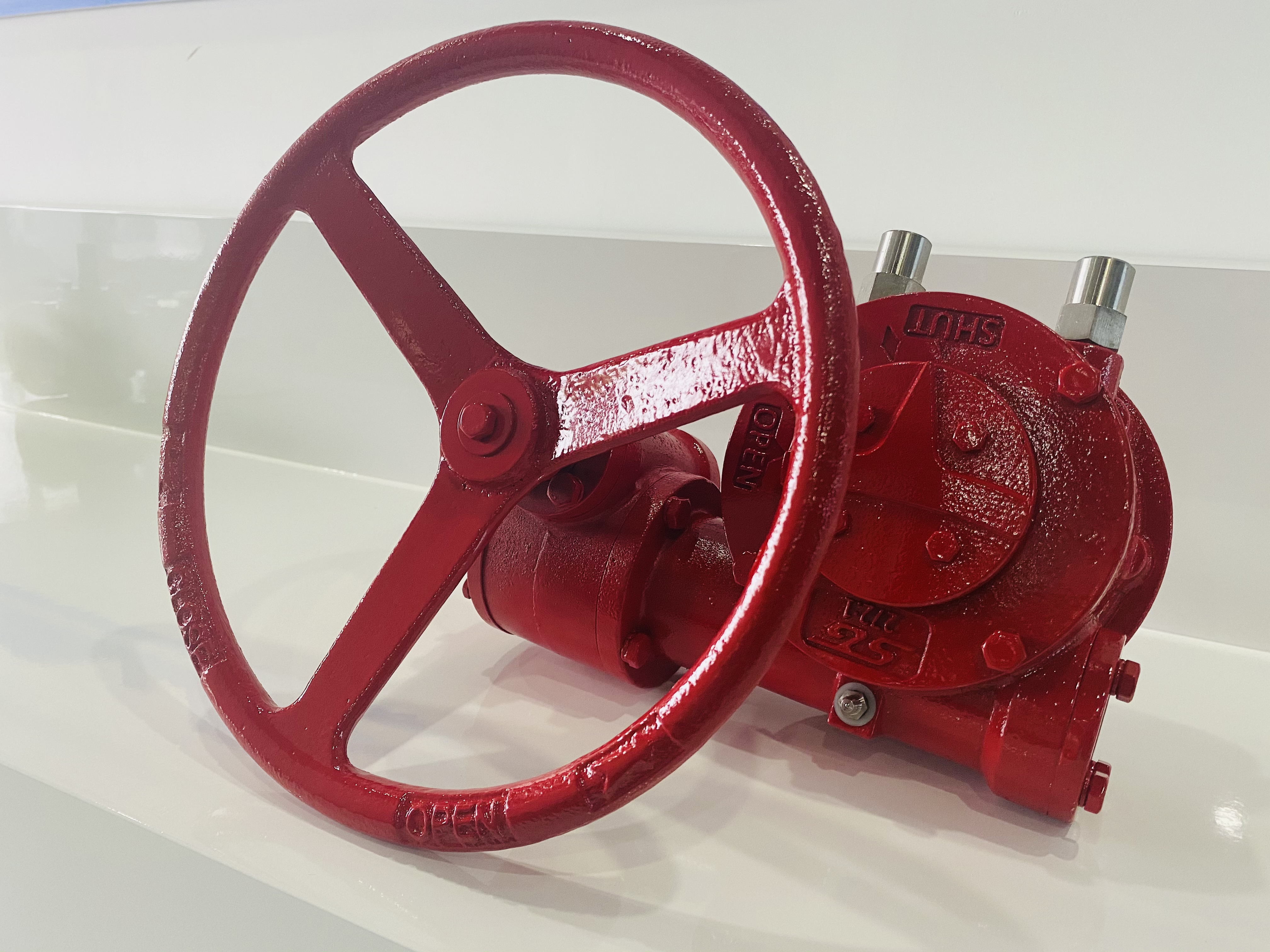

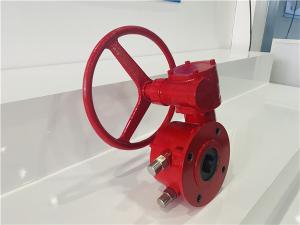

Nodular Cast Iron Underground Valve Handwheel Gearbox Water Treatment Valve

Name: Nodular Cast Iron Underground Valve Handwheel Gearbox Water Treatment Valve
Brand: Stard-gears
Price: 1 USD

China Nodular Cast Iron Underground Valve Handwheel Gearbox Water Treatment Valve wholesale

Brand Name : Stard-gears

Model Number : Nodular cast iron SDQ

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : D/P, T/T

Supply Ability : 1000 Pcs-6 weeks

Delivery Time : 20~30 work days

Packaging Details : Cartons or wooden cases

Material : Nodular cast iron

Protection class : IP67-IP68 grade protection

Working temperature : Normal Temperature,Low Temperature,Medium Temperature,-20~120℃

Application : General,Oil,Gas,Water,Valves for Solid/Liquid and Gas

Color : Blue,gray,green,Customer Require,Black

Contact Now

Nodular Cast Iron Underground Valve Handwheel Gearbox Water Treatment Valve

Instructions for Installation and Operation

Connect the bottom flange of the gear operator to the upper flange of the valve and slide the valve shaft into the drive nut. Tighten the flange bolt. The valve can be closed by turning the hand-wheel clockwise and opened by turning the hand-wheel counterclockwise.

Product Features

Nodular cast iron
Welded hand-wheel
IP67 grade protection
NBR sealing materials
Suitable for -20℃ ~ 120℃ working conditions

Nodular Cast Iron Underground Valve Handwheel Gearbox Water Treatment Valve

Customization

IP67 grade protection
Stainless steel input shaft
Designed with a lock mechanism
