Partial Turn Worm Gear Operator IP65 With Cast Aluminum Casing

Name: Partial Turn Worm Gear Operator IP65 With Cast Aluminum Casing
Brand: Stard-gears
Price: 1 USD

China Partial Turn Worm Gear Operator IP65 With Cast Aluminum Casing wholesale

Brand Name : Stard-gears

Model Number : SD-15

Certification : IP67

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/P, T/T

Supply Ability : 3000 Pcs-6 weeks

Delivery Time : 20~30 work days

Packaging Details : Cartons or wooden cases

Material : Die cast aluminum

Protection class : Protection grade IP65

Working temperature : Normal Temperature,Medium Temperature,-20~120℃

Color : Blue,Customer Require,Black

Contact Now

Partial-Turn Gear Operators Adopt A Cast Aluminum Casing Suitable For -20℃~120℃ Working Conditions

SD series partial-turn gear operators

SD series partial-turn gear operators adopt a cast aluminum casing and are suitable for conventional industrial applications in power supply, hydro-electric generation, fire fighting, and HVAC systems.

Product Features

Lightweight aluminium die-cast alloy (ACD 12) casing
IP65 graded protection
Nickel-phosphorus plated input shaft
NBR sealing materials
Suitable for -20℃~120℃ working conditions

The product design and processing in accordance with Specifications of manual valve actuators document requirements
The core parts of the product are processed with special tools to meet the requirements of product precision

Customization

Aluminum-bronze worm gear
Stainless steel input shaft

Main Components List

Part name	Material
Cover	YL113
Housing	YL113
Worm gear	QT500-7
Bracket cap	YL113

Partial Turn Worm Gear Operator IP65 With Cast Aluminum Casing

Product Tags:

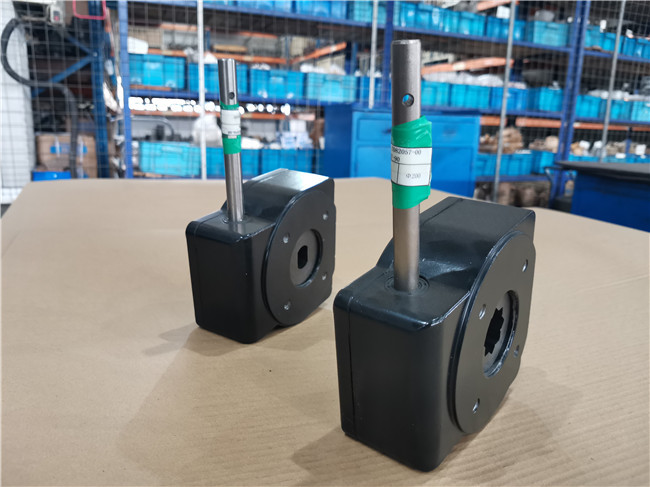

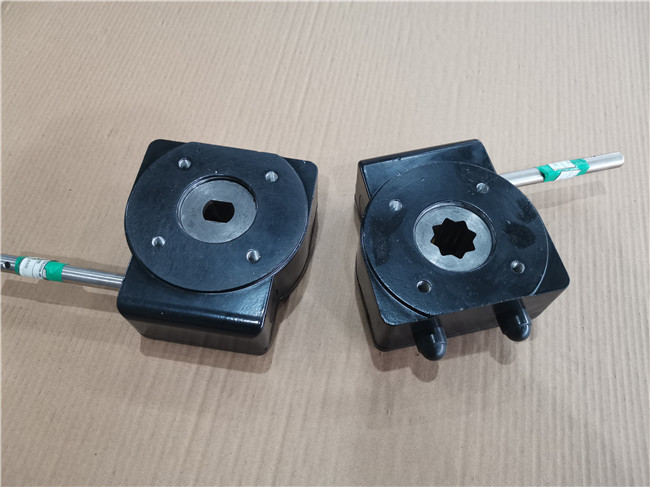

Partial Turn Worm Gear Operator IP65 With Cast Aluminum Casing Images
