Cast Steel Casing Clutch Gear Operator Suitable For Pneuematic Actuator

Name: Cast Steel Casing Clutch Gear Operator Suitable For Pneuematic Actuator
Brand: Stard-gears
Price: 1 USD

China Cast Steel Casing Clutch Gear Operator Suitable For Pneuematic Actuator wholesale

Brand Name : Stard-gears

Model Number : SLJ series

Certification : IP65

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/P, T/T

Supply Ability : 1000 Pcs-6 weeks

Delivery Time : 20~30 work days

Packaging Details : Cartons or wooden cases

Product Name : Clutch gear operator

Meterial : Aluminum die-cast alloy or cast steel casing

Protection Grade : Ingress Protection Rating IP65

Temperature : Applicable To -20 ℃ ~120 ℃

Application : General,Oil,Gas,Water,Valves For Solid/Liquid And Gas

Sealing material : NBR

Contact Now

Clutch Gear Operators With Cast Steel Casing Suitable For Pneuematic Actuator
This product is mainly used to cooperate with the starting actuator, and the pneumatic actuator is divided into double-acting actuator and single-acting actuator

SLJ series are special gear operators which are suitable for pneuematic actuator because they can be clutch.
This series consists of eight models with the speed ratio varying from 26:1 to 520:1 and the toque ranging from 300NM to 22000NM. The torque difference between every two adjacent models is small, helping to save a lot of costs for customers when selecting a specific product. The clutch gear operator has a torque ranging from 300NM to 22,000NM and is available in 8 models with the speed ratio varying from 26:1 to 520:1.

Product Features

Aluminum die-cast alloy or cast steel casing
Full stamped hand-wheel (200-350)
IP65 grade protection
Nickel-plated input shaft, with more resistance to corrosion
Ductile iron worm gear
NBR sealing material
Suitable for -20℃ ~ 120℃ working conditions

Mainly used in Marine valves and chemical, petroleum and other industries

Customization

Stainless steel or LCB casing
IP68 grade protection
Aluminum-bronze worm gear
Stainless steel input shaft
For high temperature up to 320℃
For low temperature down to -40℃
For marine use

Main Components List

Part name	Material
Small cap	WCB
Housing	WCB
Worm gear	QT500-7/ Bronze
Bracket cap	WCB

Main Technical Parameter

Model	ratio	Rating input(Nm)	Rating output(Nm)	Efficiency(%)	Hand-wheel
SLJ26	26:1	50	300	23	Φ200
SLJ38	38:1	65	550	23	Φ200
SLJ54	54:1	70	620	25	Φ250
		80	700		Φ300
		75	1000		Φ250
SLJ80	80:1	90	1200	26	Φ300
SLJ80	80:1	95	2000	26	Φ350
SLJ78	78:1	160	3200	26	Φ600

Product Tags:

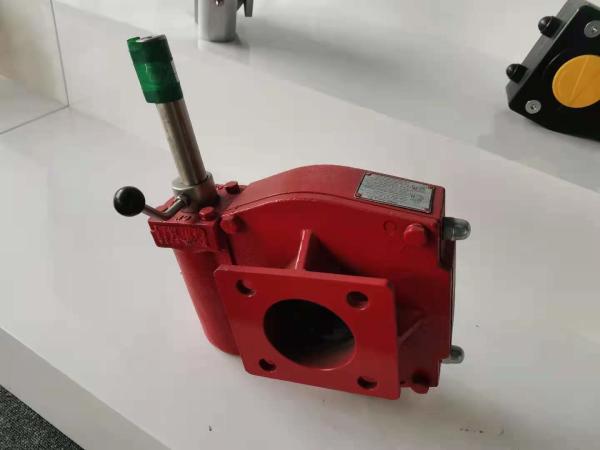

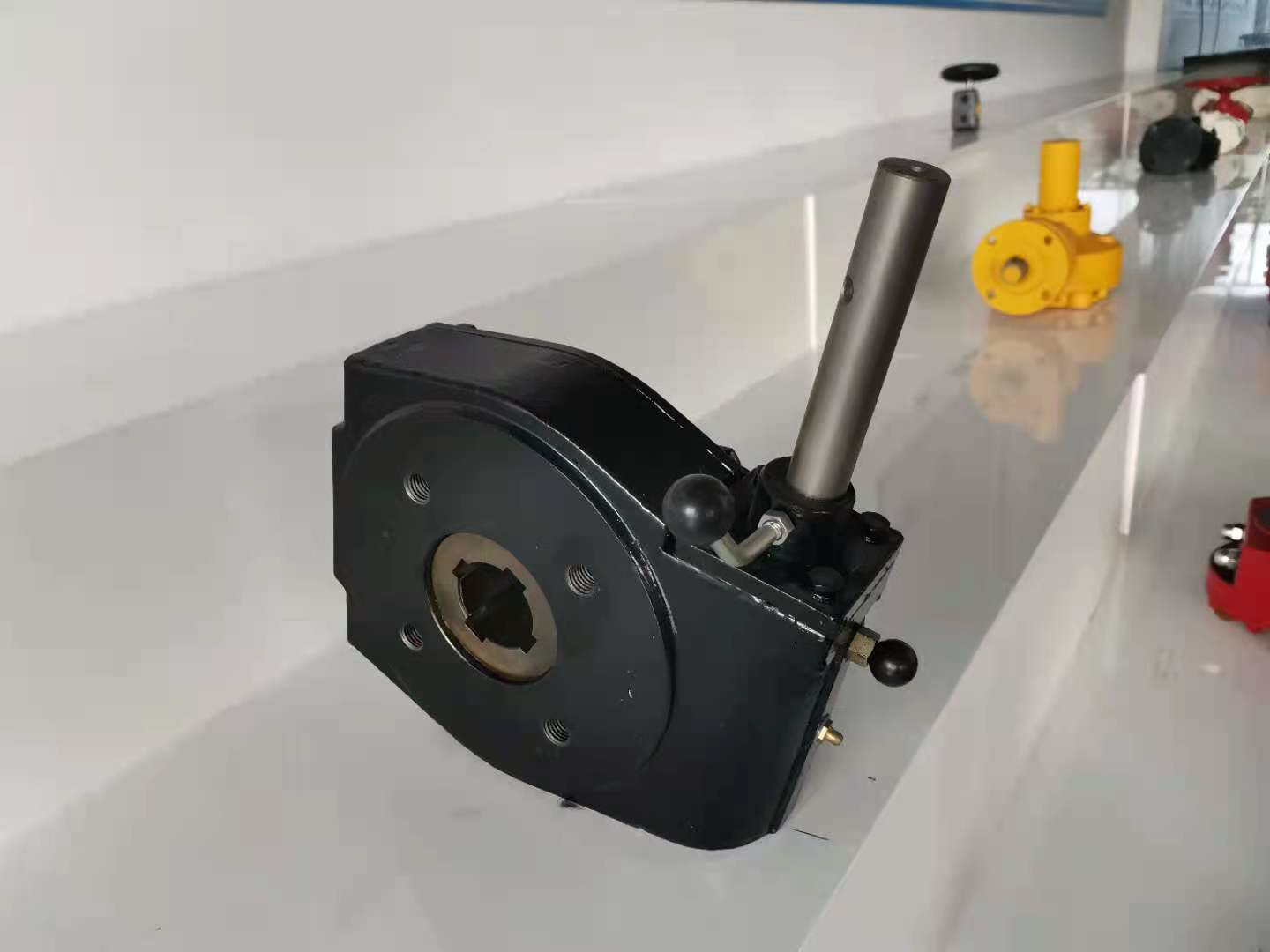

Cast Steel Casing Clutch Gear Operator Suitable For Pneuematic Actuator Images
